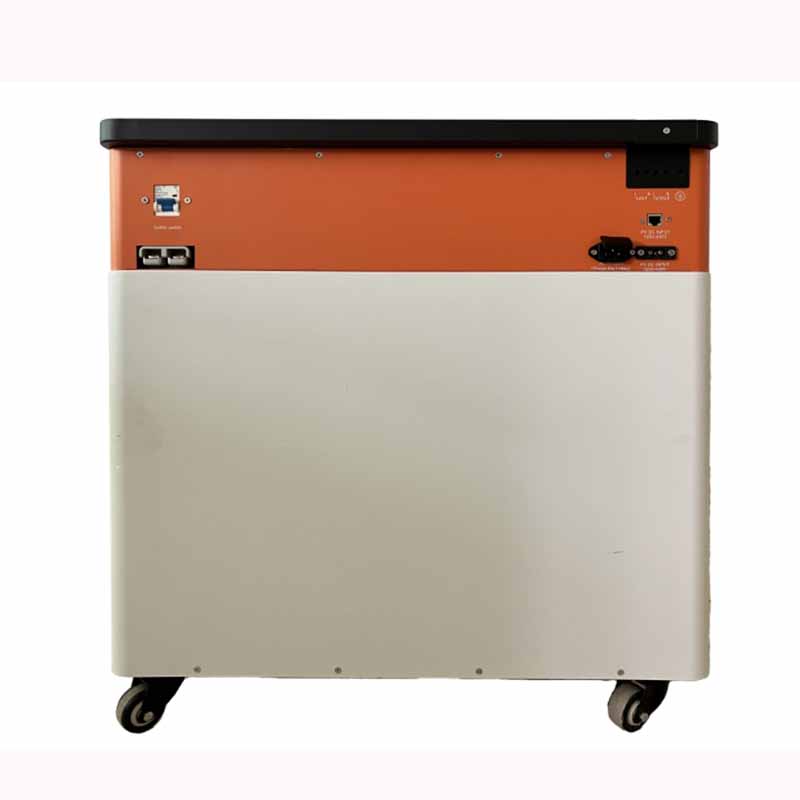

10240kwh All in one solar inverter energy storage syetem

Battery Pack parameter:

Model:GSK-51.2VAC-10KW-1

Battery pack: 16S1P

Size (L*W*H)mm:650x300x686mm

Weight (kg): About 100Kg

Battery Type: LiFePO4

Rated voltage:51.2V

Rated Power:10240Wh

Nominal Capacity: 200Ah

Actual capacity: ≥190Ah

Operating Voltage Range: 40V-58.4V

Standard charging current: 60A

Maximum continuous charging current: 100A

Maximum continu ous discharge current: 100A

Peak Discharge Current: 200A(2S)

Charge cut-off voltage: 58.4V

Discharge cut-off voltage: 38.4V

Internal Resistance (mΩ): ≤20mΩ

Battery Cycle Life :2000 times(0.5C standard charge and discharge)

Waterproof Level: IP20

Cooling Mode: Natural Cooling

Transport voltage: 51V-53V

Communication method: RS485

Operating  Temperature : Charge -5℃-55℃,Discharg e -15℃-60℃,Storage:-10℃-40℃

Inverter parameter

Input:

Rated power: 5000VA/5000W

Inpu t system:L+N+PE

Rated input voltage: 208/220/230/240VAC

voltage range: 170~280VAC(computer equipment);90~280VAC (household appliance)

Frequency Range:50Hz / 60Hz (adaptive)

Output:

Output system: L+N+PE

The output voltage: 220/110V AC±5%

Output frequency: 50/60Hz±0.1%

Waveform:Pure string wave

Switch time:Computer equipment 10ms, household  appliances 10ms

Peak power:10000 VA

Overload:  Battery mode:1min@102%~110% Load 10s@110%~130% Load3s@130%~150% Load200ms@ >150% Load

Peak efficiency (battery mode) >94%

Battery:

Rated voltage: 48 VDC

Constant voltage charging voltage (can be set) :56.4 VDC

Floating charge charging  voltage (can be set) :54 VDC

Charger:

PV input voltage: MPPT

Maximum PV input voltage:65-150V

Maximum PV charging current:80 A

Maximum city charge  charging current:80 A

Maximum charging current:80 A

LED:

LED interface:  2 × 8pin / PITCH 2.54mm, support 128- bit segment code, up to 4 buttons +4LED, can display Run mode / load / input / output, etc

interface:  Parallel interface:Parallel function

Environme ntal parameters:

Run ambient temperature:-20℃~40℃

Operating environment humidity:20% ~ 95% (no condensation)

Storage temperature:-10 ℃~40℃

Altitude:The altitude should not exceed 1000m, 1000m or more, up to 4000M

Noise:≤50db
