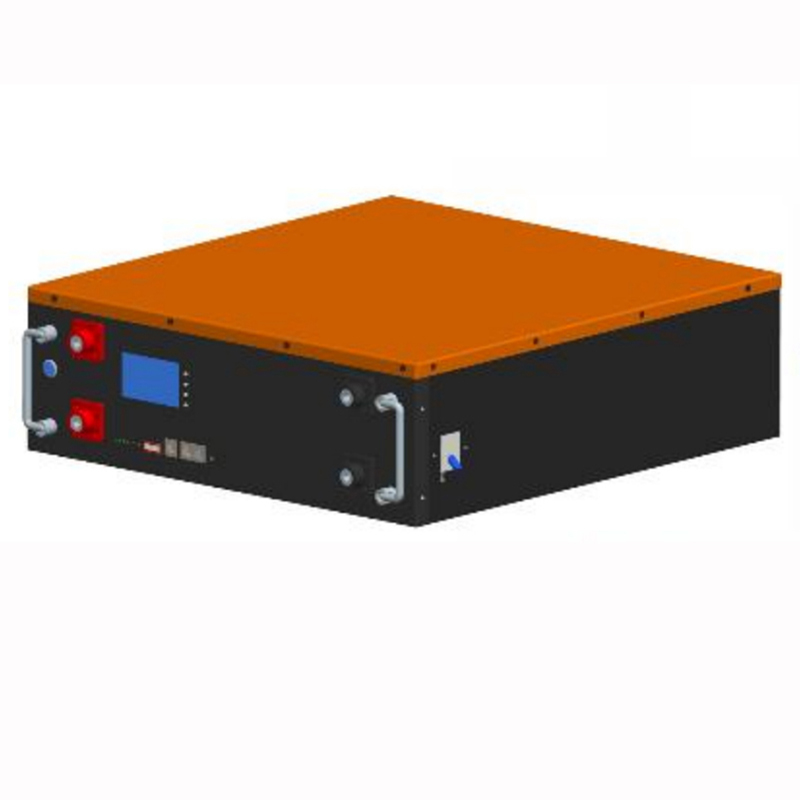

51.2V 100A 5.12kWh Lifepo4 Battery Pack

Model: GSK-5.12kWh

Battery pack: 16S1P

Size (L*W*H)mm: 516x490x158mm

Net weight (kg): About 50Kg

Gross weight About: 58Kg

Box size: 560x530x200mm

Battery Type: LiFePO4

Rated voltage: 51.2V

Rated Power: 5.12kWh

Nominal Capacity: 100Ah

Actual capacity: ≥100Ah

51.2V 100A 5.12kWh Lifepo4 Battery Pack

Model: GSK-10.24kWh

Battery pack: 16S1P

Size (L*W*H)mm: 540x482x280mm

Net weight (kg): About 81Kg

Gross weight: About 86Kg

Box size: 660x630x380mm

Battery Type: LiFePO4

Rated voltage: 51.2V

Rated Power: 10.24kWh

Nominal Capacity: 200Ah

Actual capacity: ≥200Ah

Operating Voltage Range: 40V-58.4V

Standard charging current: 30A

Maximum continuous charging current: 100A

Maximum continuous discharge current: 100A

Peak Discharge Current: 200A(2S)

Charge cut-off voltage: 58.4V

Discharge cut-off voltage: 38.4V

Internal Resistance (mΩ): ≤20mΩ

Battery Cycle Life :6000 times:((0.5C standard charge and discharge)

Waterproof Level: IP20

Cooling Mode: Natural Cooling

Humidity: 45-85%RH

Atmospheric Pressure: 86-106 KPA

Transport voltage: 51V-53V

Communication method: RS485

Operating Temperature: Charge -5℃-55℃; Discharge -15C-60℃, Storage -10℃-40℃
